Turnbuckle with double eyelet
Previous Next

Turnbuckle with double eyelet

07.193.04 Ridoir oeil
TAILLE
€2.60
Quantity :

Last items in stock

2 Articles

Delivery
Delivery

Colissimo Domicile sans signature : between Monday 23 March and Wednesday 25 March

MONDIAL RELAY : between Monday 23 March and Friday 27 March

Order in:

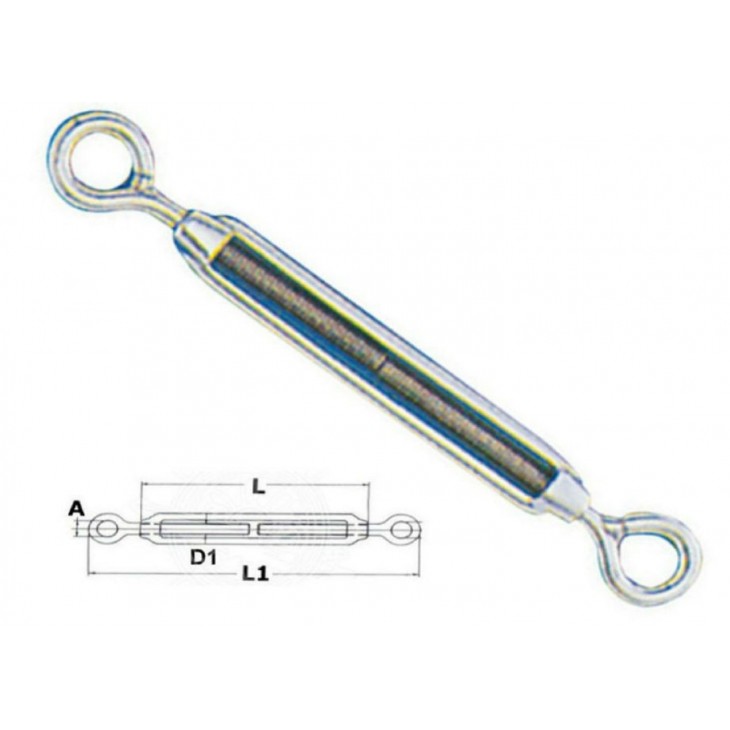

Double eyelet turnbuckle in polished AISI 316 stainless steel.
Specifications:

  • 4 mm: Thread D1 4 MA, L 60 mm, L1 100 mm, A 7 mm.
  • 5 mm: Thread D1 5 MA, L 70 mm, L1 120 mm, A 8 mm, Working load: 160 kg.
  • 6 mm: Thread D1 6 MA, L 90 mm, L1 150 mm, A 10 mm, Working load: 320 kg.
  • 8 mm: Thread D1 8 MA, L 120 mm, L1 200 mm, A 14 mm, Working load: 560 kg.
  • 10 mm: Thread D1 10 MA, L 150 mm, L1 240 mm, A 16 mm, Working load: 880 kg.
