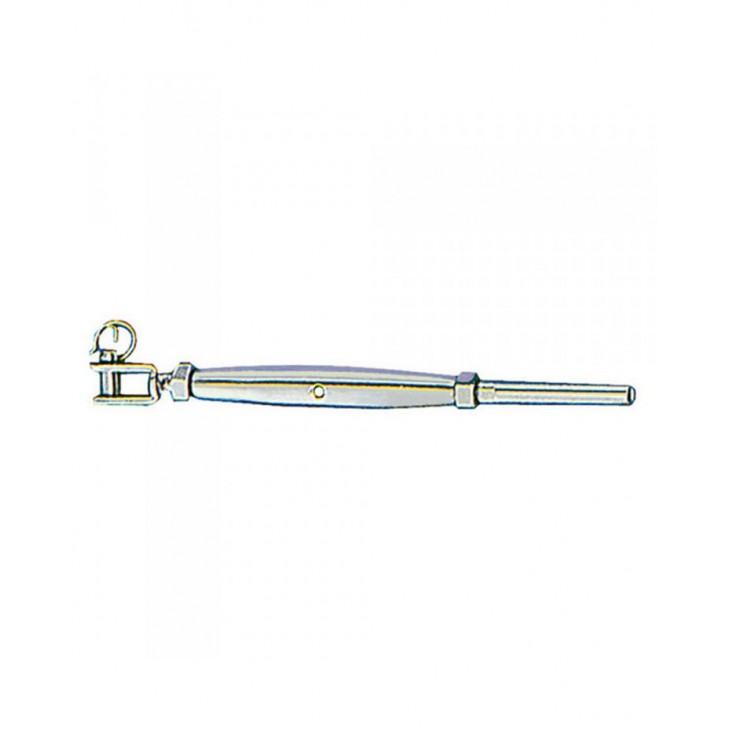

Stainless steel turnbuckle with fixed jaw and swage end

Stainless steel turnbuckle with one fixed jaw end and one swage end.

• Thread Ø D1: 12 mm, Cable Ø: 6 mm, Min length L1: 285 mm, Max length L: 400 mm
  A: 14 mm, D: 12 mm, H: 20 mm, Working load: 550 kg
• Thread Ø D1: 10 mm, Cable Ø: 5 mm, Min length L1: 230 mm, Max length L: 320 mm
  A: 12 mm, D: 9 mm, H: 14 mm, Working load: 550 kg
• Thread Ø D1: 8 mm, Cable Ø: 4 mm, Min length L1: 200 mm, Max length L: 275 mm
  A: 11 mm, D: 8 mm, H: 11 mm, Working load: 350 kg
• Thread Ø D1: 6 mm, Cable Ø: 3 mm, Min length L1: 175 mm, Max length L: 245 mm
  A: 7.5 mm, D: 6 mm, H: 10 mm, Working load: 250 kg

⚠️ Note: The turnbuckle must be lubricated before installation.
