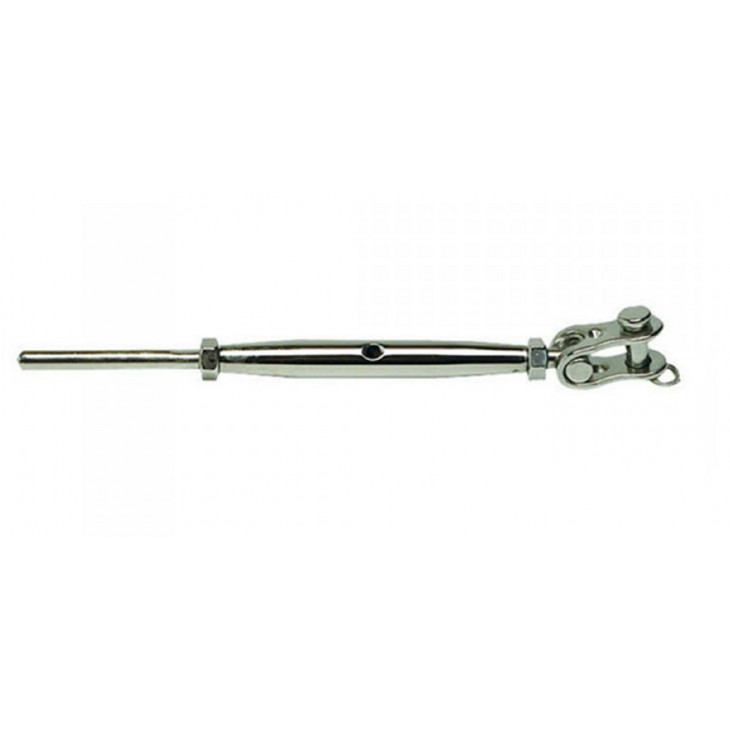

Articulated chain stopper and crimping ferrule

Turnbuckle with articulated eye fitting and crimp fitting.

• Thread diameter G: 6 mm, Cable diameter: 3 mm, Max length L: 180 mm, Max length L4: 257 mm, A: 7 mm, D: 6 mm, D4: 6.35 mm, Working load: 238 kg.
• Thread diameter G: 8 mm, Cable diameter: 4 mm, Max length L: 212 mm, Max length L4: 297 mm, A: 10 mm, D: 8 mm, D4: 7.5 mm, Working load: 450 kg.
• Thread diameter G: 10 mm, Cable diameter: 5 mm, Max length L: 246 mm, Max length L4: 361 mm, A: 12 mm, D: 9 mm, D4: 9 mm, Working load: 625 kg.
