Turnbuckle 2 cages

Reference : 07.192.04

Made of polished mirror-finish AISI 316 stainless steel. Precision craftsmanship. Generously sized sliding threads for greater adjustment range.

TAILLE

€8.90

Quantity :

In stock

4 Articles

Delivery

Colissimo Domicile sans signature : between Thursday 7 May and Monday 11 May

MONDIAL RELAY : between Thursday 7 May and Wednesday 13 May

Order in:

Description

Stainless steel turnbuckle AISI 316 mirror polished

Made of mirror-polished AISI 316 stainless steel

High-quality finish

Sliding threads, generously sized for extended adjustment range

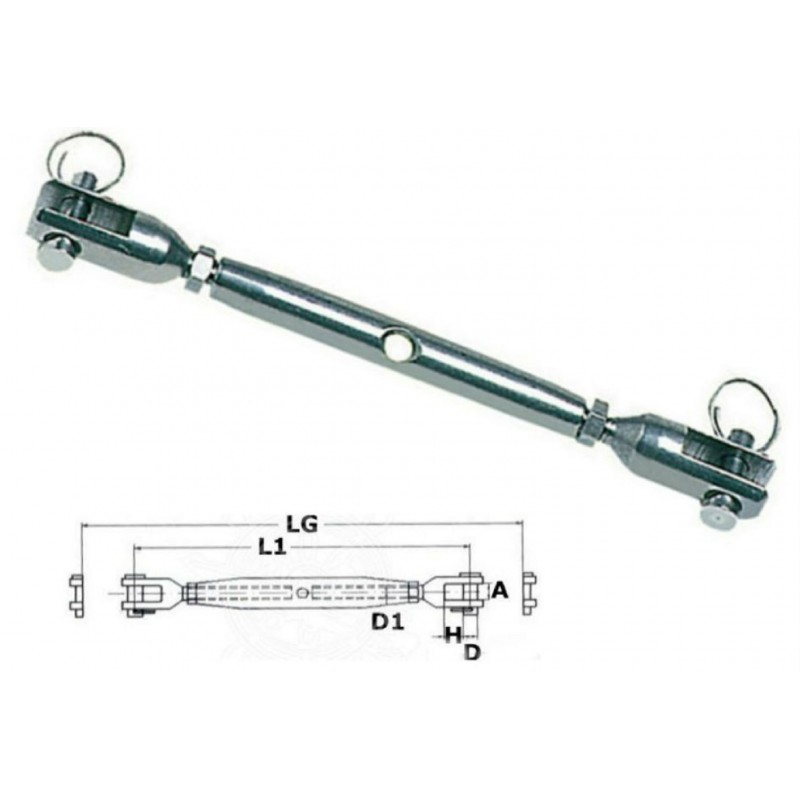

Dimensions and working loads:
Ø 4 mm – Thread D1: 4 MA – L1: 115 mm – A: 5.5 mm – D: 4 mm – H: 8 mm – LG: 175 mm – Working load: 410 kg
Ø 5 mm – Thread D1: 5 MA – L1: 140 mm – A: 6.5 mm – D: 5 mm – H: 10 mm – LG: 195 mm – Working load: 460 kg
Ø 6 mm – Thread D1: 6 MA – L1: 160 mm – A: 7.5 mm – D: 6 mm – H: 10 mm – LG: 230 mm – Working load: 910 kg
Ø 8 mm – Thread D1: 8 MA – L1: 180 mm – A: 11 mm – D: 8 mm – H: 11 mm – LG: 255 mm – Working load: 1,330 kg
Ø 10 mm – Thread D1: 10 MA – L1: 220 mm – A: 12 mm – D: 9 mm – H: 14 mm – LG: 300 mm – Working load: 2,180 kg
Ø 12 mm – Thread D1: 12 MA – L1: 270 mm – A: 14 mm – D: 12 mm – H: 20 mm – LG: 380 mm – Working load: 3,200 kg
Ø 14 mm – Thread D1: 14 MA – L1: 295 mm – A: 15 mm – D: 12 mm – H: 22 mm – LG: 415 mm – Working load: 4,300 kg
Ø 16 mm – Thread D1: 16 MA – L1: 340 mm – A: 17 mm – D: 12 mm – H: 26 mm – LG: 480 mm – Working load: 5,310 kg
Ø 20 mm – Thread D1: 20 MA – L1: 375 mm – A: 20 mm – D: 14 mm – H: 29 mm – LG: 525 mm – Working load: 7,940 kg
