Turnbuckle with 2 articulated eye

Reference : 07.195.06

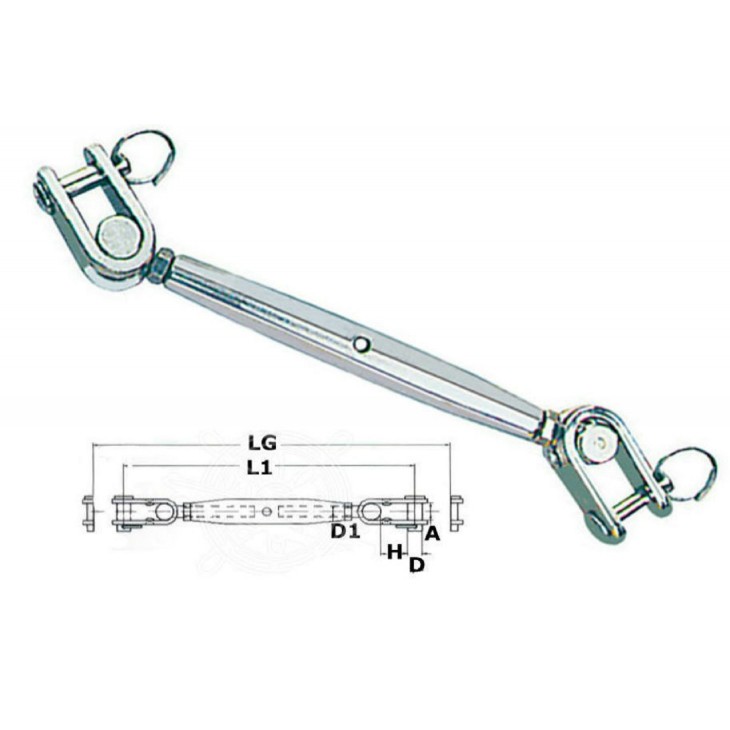

Turnbuckle with two articulated eyes in AISI 316 stainless steel:

Ø 6 mm: Thread D1: 6 MA, Length L1: 160 mm, Width A: 7 mm, Diameter D: 6 mm, Height H: 15 mm, Total length LG: 230 mm, Working load: 600 kg
Ø 8 mm: Thread D1: 8 MA, Length L1: 190 mm, Width A: 10 mm, Diameter D: 8 mm, Height H: 20 mm, Total length LG: 265 mm, Working load: 1,000 kg
Ø 10 mm: Thread D1: 10 MA, Length L1: 230 mm, Width A: 12 mm, Diameter D: 9 mm, Height H: 25 mm, Total length LG: 320 mm, Working load: 1,400 kg
Ø 12 mm: Thread D1: 12 MA, Length L1: 280 mm, Width A: 13 mm, Diameter D: 12 mm, Height H: 30 mm, Total length LG: 390 mm, Working load: 2,400 kg

TAILLE

€9.60

Quantity :

Last items in stock

1 Article
